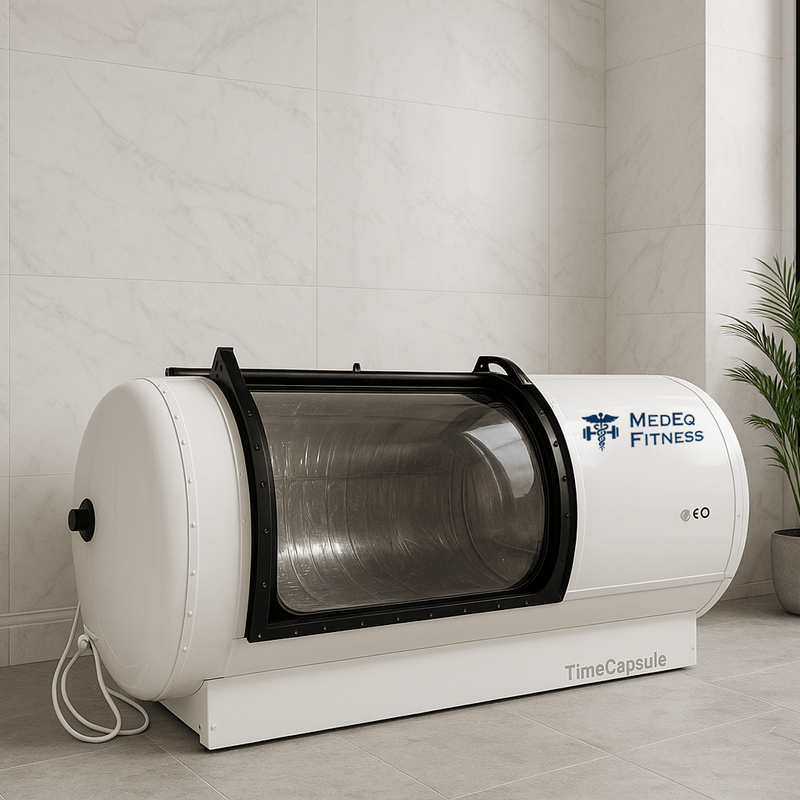

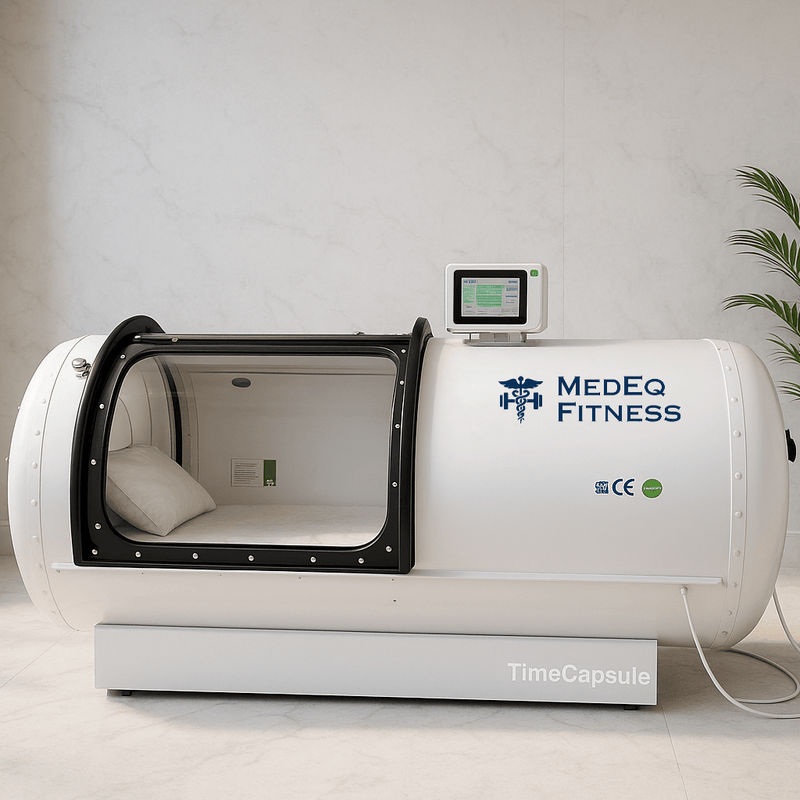

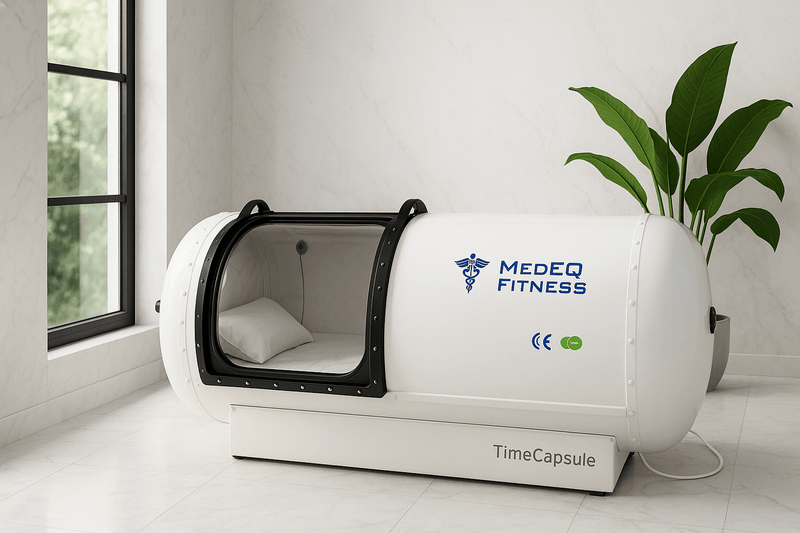

The MedEq C750+ is our upgraded, traditional capsule-style hard-shell hyperbaric oxygen chamber custom manufactured to MedEq Fitness specifications. It delivers true 2.0 ATA therapeutic pressure with an integrated high-flow oxygen system, advanced air purification, and full environmental control in a compact, luxury-grade footprint.
Designed for use by fitness enthusiasts, athletes, clinics, recovery centers, med-spas, and serious home users, the C750+ combines medical-grade engineering with physician-led curation, including an optional red light panel, optional full BIBS oxygen delivery system, standard upgraded host unit (air compressor + oxygen concentrator + air conditioner all in one), and intelligent dual-screen controls.
*We do not recommend combining the optional red light panels and BIBS together in the C750+ due to the reduction in internal volume for the occupant. We recommend either one or the other, but not both.
True 2.0 ATA therapeutic pressure
Capsule-type hard shell chamber rated up to 2.0 ATA (≈2 bar) for higher-intensity protocols.
- Capsule-type hard shell chamber rated up to 2.0 ATA (≈2 bar) for higher-intensity protocols.
- Factory KX-Y01 configuration supports a 1.9–2.0 ATA operating range for flexible clinical and wellness us.
Internal capsule length ~2000 mm (78.7 in) with a spacious monoplace layout in a compact footprint.
- Internal capsule length ~2000 mm (78.7 in) with 750 mm (29.5 in) diameter for a spacious monoplace layout while maintaining a small footprint in the room.

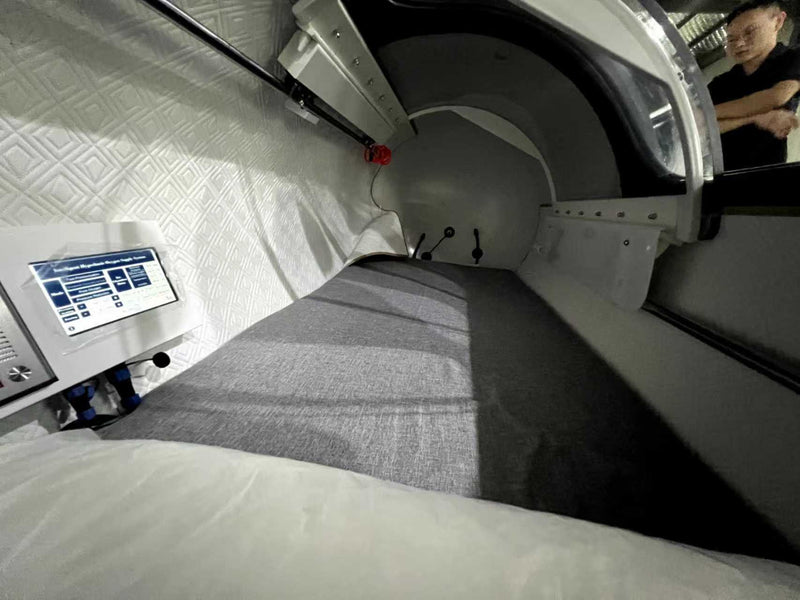

- Recumbent “pod” design supports a comfortable lying or reclined position.
High-purity PSA oxygen system identical to the C900+, optimized for a smaller cabin volume.
- PSA oxygen generator delivering high-purity oxygen (≈93% ±3%) at therapeutic pressure.
- High-flow output (up to ~15 L/min at 2.0 ATA, unit-set) feeding the BIBS system for stable oxygen delivery during the entire session.
- Oxygen pressure at the host typically in the 120–140 kPa range (behind the BIBS regulators), engineered for reliable performance under load.

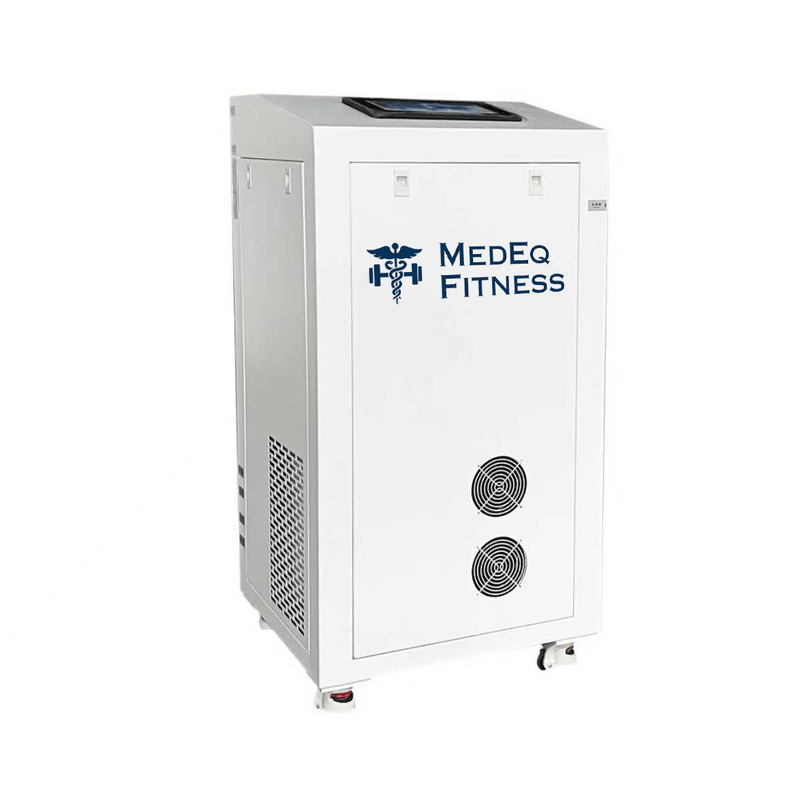

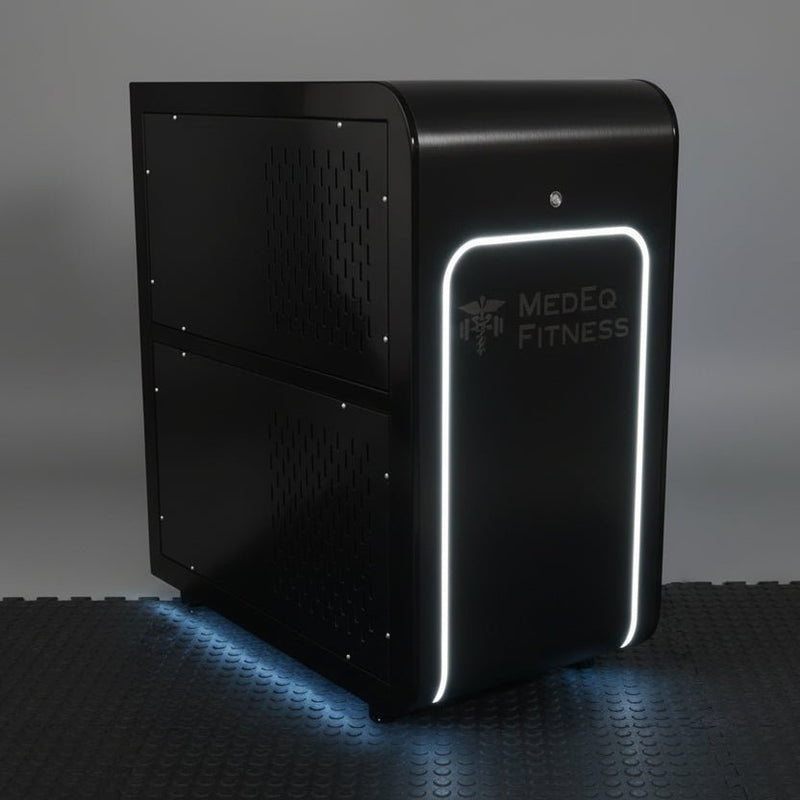

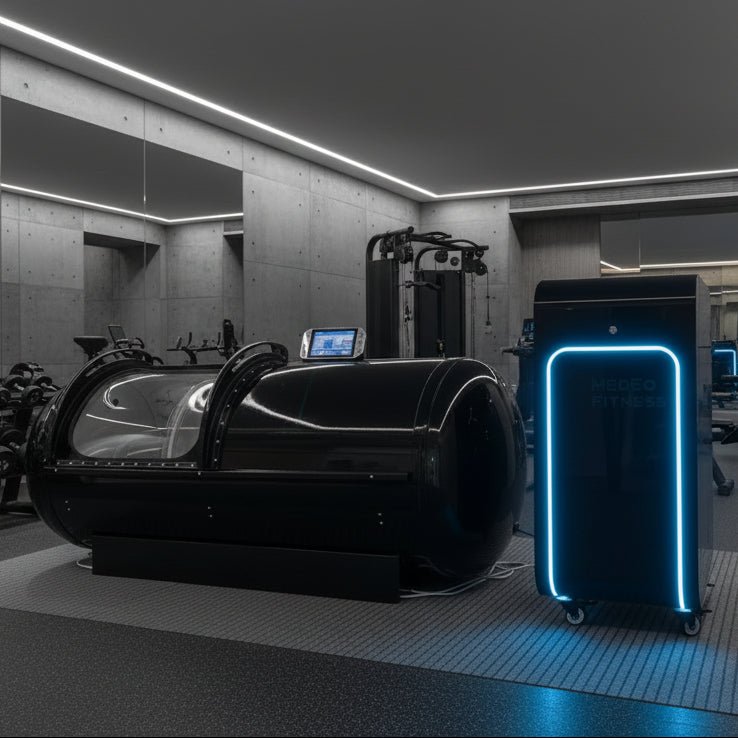

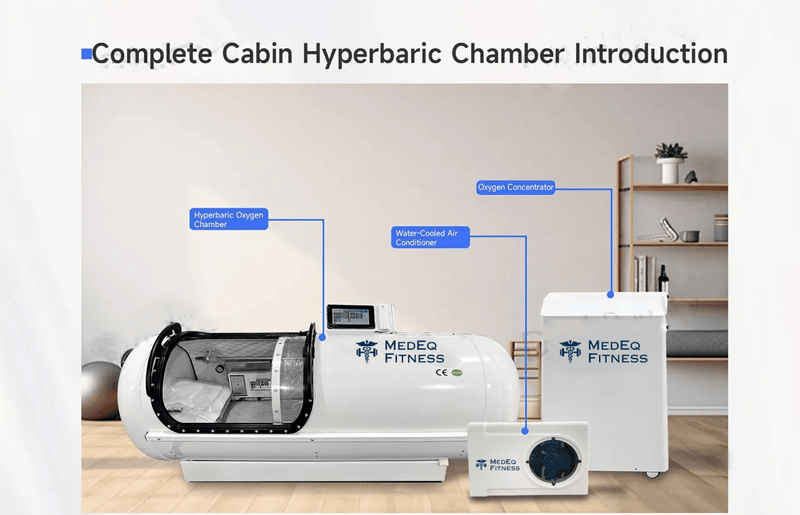

Single external host powers the entire system, reducing clutter and simplifying installation.
- Single external host powers the entire system:
- Oil-free air compressor for pressurization
- PSA oxygen concentrator
- Integrated air-conditioning for cabin temperature control
- Reduces clutter and installation complexity compared to separate components.
- Intelligent host control with automated pressurization / depressurization curves.
Add an optional BIBS (Built-In Breathing System) for advanced mask-based oxygen delivery while helping maintain safe ambient oxygen levels inside the chamber.
- BIBS delivers high-purity oxygen directly through a sealed mask instead of enriching the entire chamber air.
- Supports safer operation by helping keep cabin oxygen closer to room-air levels.
- Dedicated supply and exhaust pathways help manage exhaled CO₂ and maintain a controlled in-chamber atmosphere.
- Ideal for clinics, recovery centers, and advanced home users who want protocol-driven oxygen delivery.
- Learn more about the BIBS upgrade →
Multi-stage intake filtration and ionization help keep cabin air clean and fresh.
- Multi-stage intake filtration prior to cabin delivery (particulate + advanced filters) to help remove dust and airborne contaminants.
- Integrated air purification with negative ionization to help freshen incoming air and improve perceived air quality inside the chamber.
- Cabin oxygen diffusion kept at or below 23% to align with safety norms for fire risk mitigation.
Integrated cooling and quiet operation create a comfortable in-chamber environment.
- Integrated cooling via the host’s air-conditioning loop to maintain comfortable cabin temperature.
- Engineered for quiet operation with low internal cabin noise; typical host noise kept in the ≤50 dB range so users can relax or use media devices during treatment.
- Stable cabin humidity around ~26% for consistent comfort.

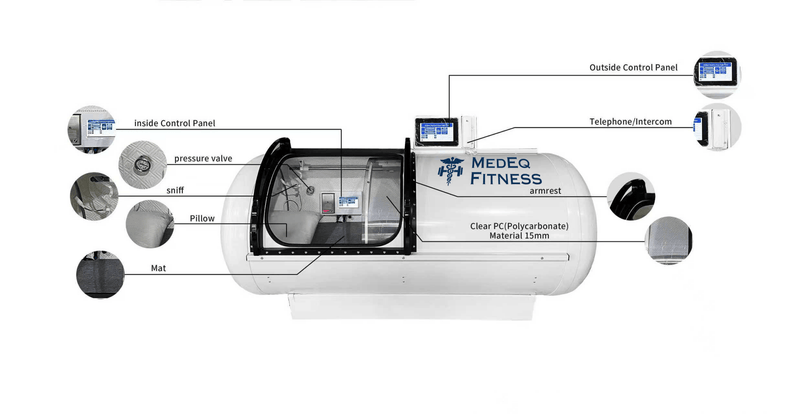

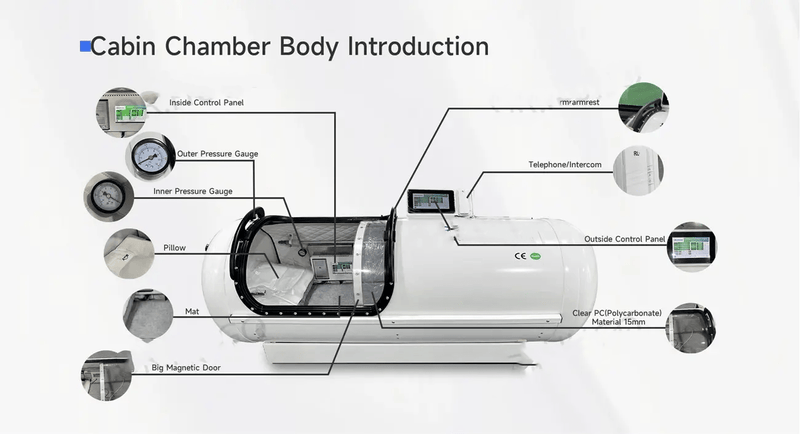

Dual control screens and wireless intercom support full duplex communication and control.

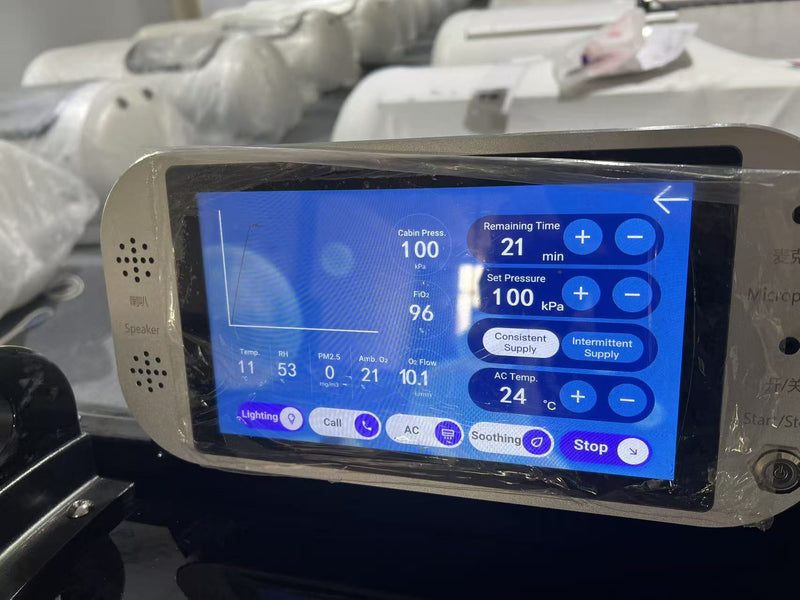

- Dual control screens (inside and outside) for full duplex control by both operator and user.
- Wireless intercom built into the capsule so staff can monitor and communicate with the user at all times.
- Intelligent programmed pressure curves with manual override and emergency depressurization options.

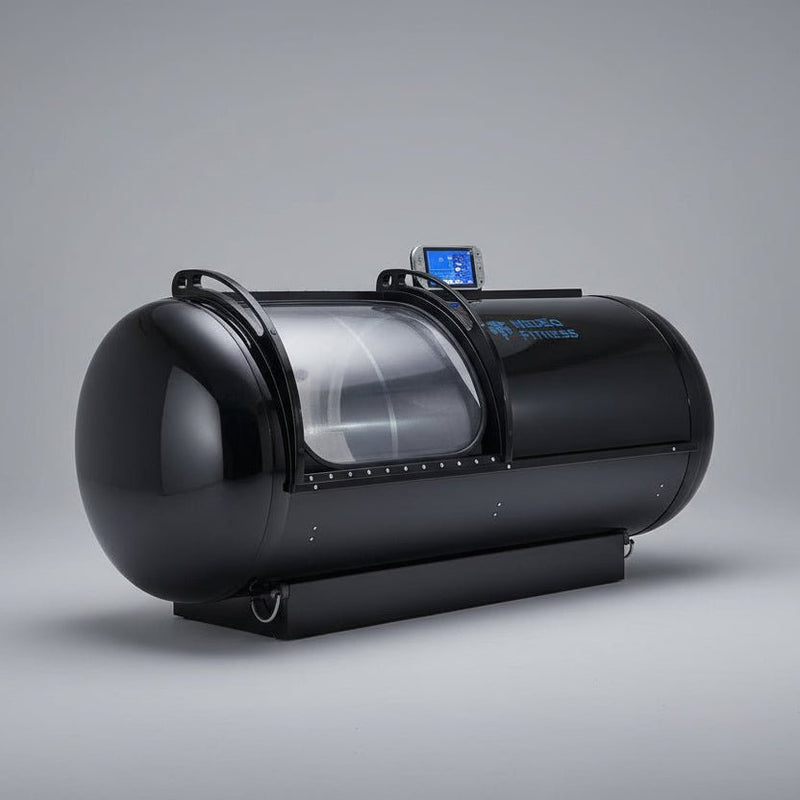

Aircraft-grade aluminum alloy shell with redundant safety valves and emergency depressurization.
- Hard-shell capsule constructed from aircraft-grade aluminum alloy engineered for pressure vessel applications.

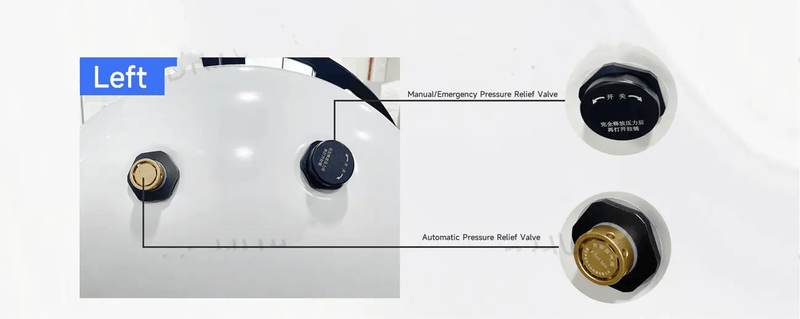

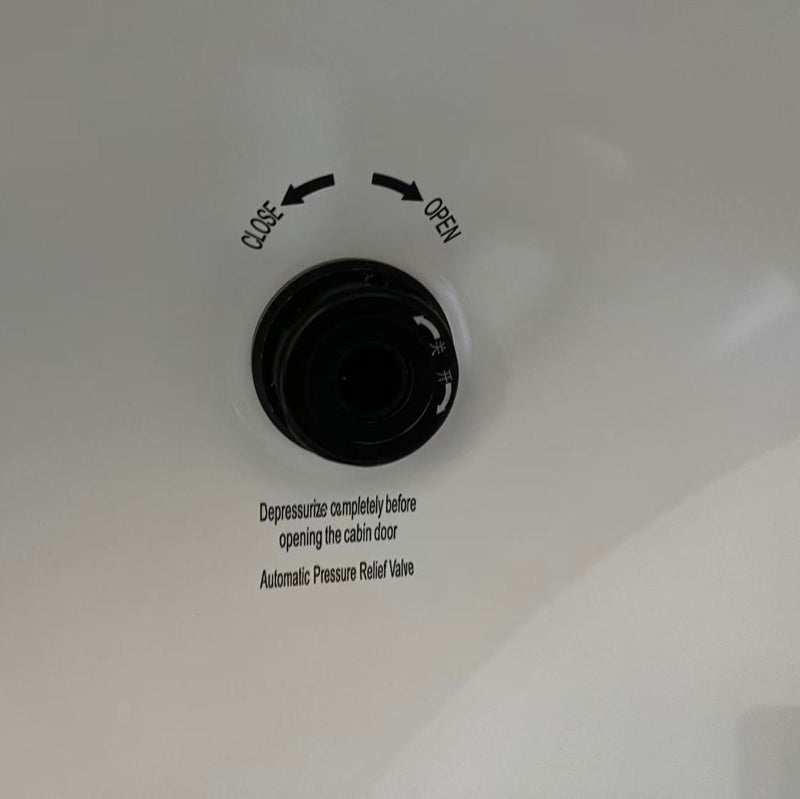

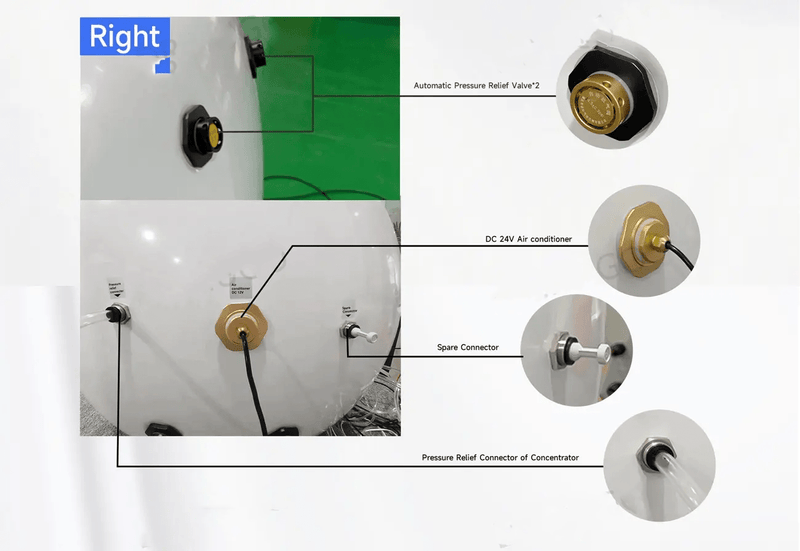

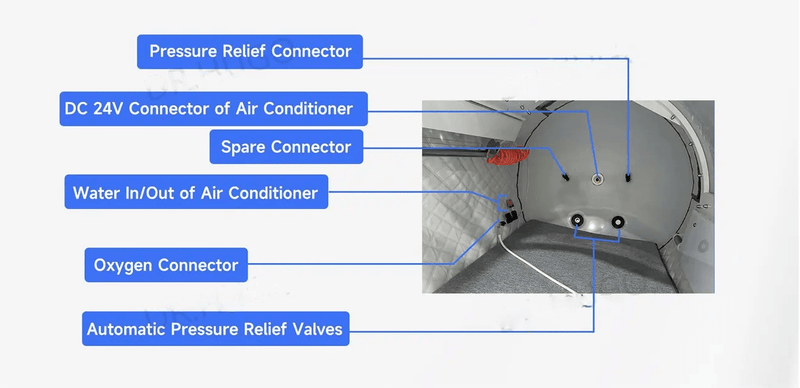

- Redundant safety valves and pressure relief hardware for over-pressure protection.
- Emergency stop and rapid depressurization features to bring the chamber back to ambient pressure quickly if required.
- Designed to align with international mild-HBOT best practices for 2.0 ATA class systems (when installed and operated according to manufacturer guidance)
Typical KX-Y01 configuration: 1.9 ATA operating setpoint (adjustable down to mild pressures)
Diameter: 750 mm (≈29.5 in)

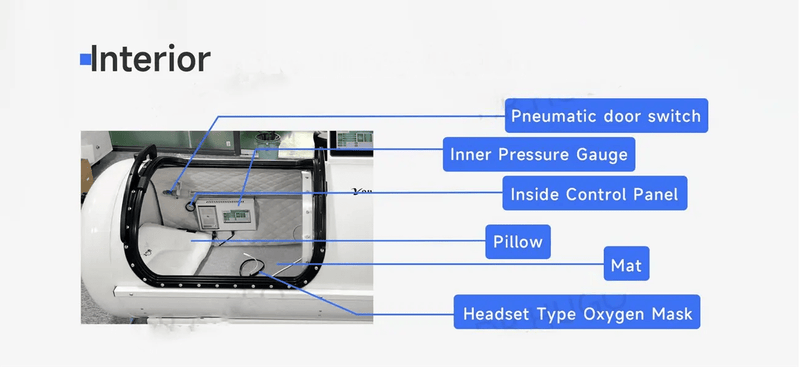

Interior finish & lighting
Wireless intercom

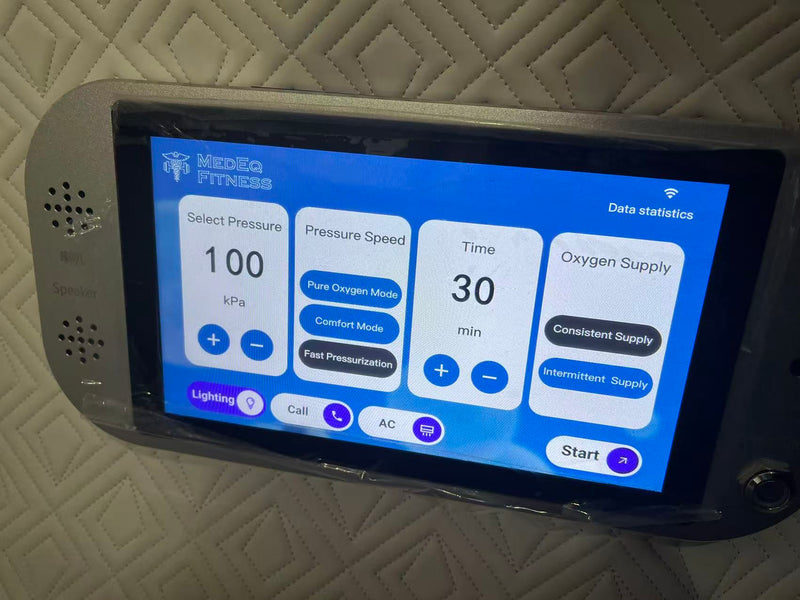

Internal touch/control screen (duplex with outside screen)

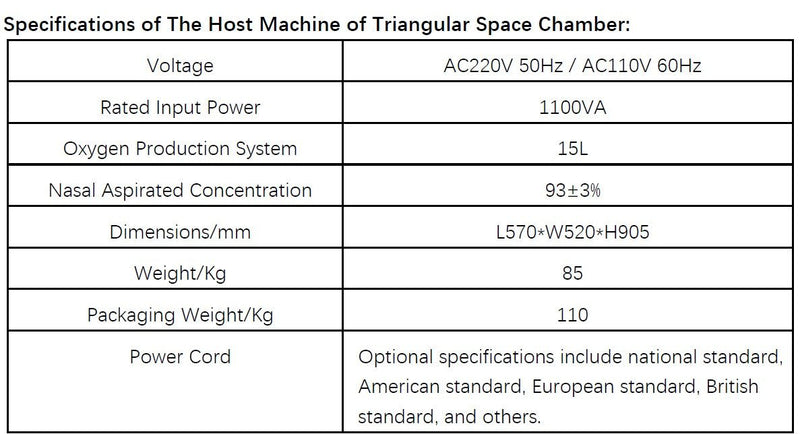

Host Unit (Compressor + O₂ + AC – all in one)
Oxygen Delivery & BIBS
Exhaled gas routed away from the cabin atmosphere via BIBS exhaust circuit to help control CO₂ and humidity
Filtration & Ionization
MedEq Fitness uses the Kingshare KX-Y01 platform customized to our specifications.
